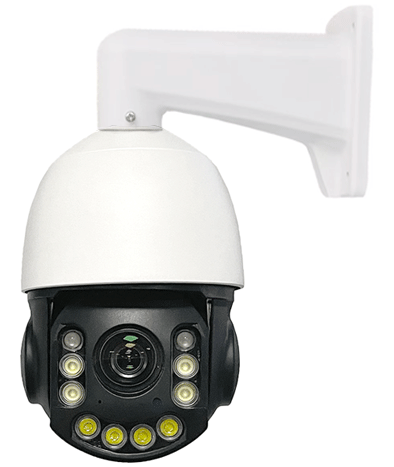

Colorful Auto Tracking 4 inch Metal IP PTZ Camera BY-PTZ-5HGD BY-PTZ-8HGDS

Colorful Auto Tracking 4 inch Metal IP PTZ Camera

Product Overview

This presentation introduces our Colorful Auto Tracking 4-inch Metal IP PTZ Camera series, including BY-PTZ-5HGD (5.0MP)

and BY-PTZ-8HGDS (8.0MP) models.

Designed for professional surveillance scenarios, these cameras combine high-resolution imaging, intelligent auto-tracking,

and full-color day/night capture, with a rugged metal build for reliable performance in diverse environments.

Key positioning: Smart, high-definition, all-weather PTZ surveillance cameras with powerful zoom and intelligent detection capabilities.

Core Key Features

✅ 20x Optical Zoom + Auto Focus: 4.8mm-86.4mm focal length, 3s fast zoom from wide to tele view

✅ High-Resolution Imaging: 5.0MP/8.0MP progressive scan CMOS sensors for crystal-clear visuals

✅ All-Weather Full-Color Capture: True Day/Night mode, 150m IR distance, 0.05Lux color min. Illumination

✅ Intelligent Functions: 3D intelligent positioning, auto-tracking (with zoom in/out), human detection & alarm trigger

✅ Image Enhancement: 3D DNR, Digital WDR (≥100dB), backlight compensation, AGC, multiple white balance modes

✅ Flexible Storage & Audio: Optional TF card slot (max. 512G), optional two-way audio (G711A compression)

✅ PTZ Customization: 254 programmable presets, 8 patrol routes, 8 patterns

Core Key Features

✅ Advanced Video Encoding: H.265+/H.265/H.264 Main Profile, dual-stream encoding for simultaneous video transmission

✅ Wide Compatibility: P2P support (Android/iOS), ONVIF 2.6 compliance, standard SDK & CGI for system integration

✅ Reliable Performance: -30°C ~ 60°C working temperature, humidity ≤90%RH, metal housing for durability

✅ Smart Control: Motion detection, 4 privacy zone masking, adjustable OSD (zoom, name, time display)

✅ Power & Network: 12VDC 2A power supply, optional POE, rich network protocols for stable connection

Compatibility & Integration

Network Protocols

TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNS, P2P, RTMP

Private Protocol & Software Compatibility

       Supports XM NVR private protocol, Hikvision private protocol

       Compatible with iVMS-4200, UC2

       ONVIF 2.6 compliance for universal integration

Mobile & PC Support

       P2P connection for Android & iOS devices via Videolink APP

       Standard SDK and CGI for seamless integration with third-party digital systems

Optional Peripherals

      POE support for simplified network power supply

       Two-way audio for real-time communication

       TF card for local video storage

Application Advantages

1. All-Scenario Surveillance

Suitable for outdoor/indoor scenarios: parking lots, industrial parks, commercial plazas, residential communities, roads, and public facilities

(wide temperature range for extreme weather).

2. Intelligent Monitoring Efficiency

Auto-tracking with zoom in/out, human detection, and alarm trigger reduce manual monitoring workload;

254 presets and patrol routes realize automatic round-the-clock monitoring.

3. High-Definition & Clear Imaging

5/8MP resolution, 3D DNR, and WDR ensure clear visuals even in low-light, backlight, or noisy environments;

150m IR distance and full-color capture for 24-hour clear video.

4. Easy Deployment & Integration

Optional POE, P2P mobile access, and multi-protocol compatibility enable quick installation and seamless integration

with existing surveillance systems.

5. Durable & Reliable

Metal housing, rugged design, and wide working temperature range ensure long-term stable operation in harsh environments.

Summary

Our Colorful Auto Tracking 4-inch Metal IP PTZ Camera series (BY-PTZ-5HGD/8HGDS) is a high-performance, intelligent, and all-weather surveillance solution that integrates:

       High-resolution imaging and powerful zoom capabilities

      Advanced intelligent functions (auto-tracking, human detection)

      All-weather full-color capture and image enhancement

      Wide compatibility and flexible integration options

       Rugged design for reliable long-term performance

These cameras meet the diverse needs of professional surveillance scenarios, providing efficient, clear, and smart monitoring services for users.
