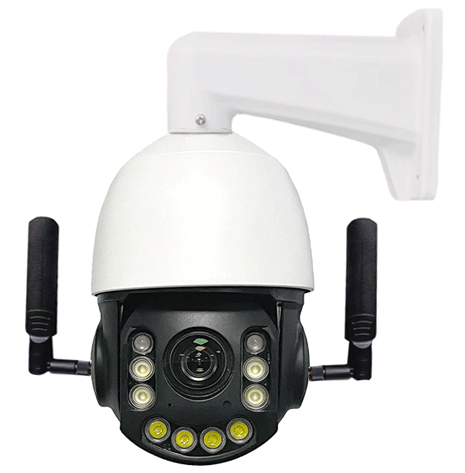

20X 4G Auto tracking HD IP PTZ Camera
Product Overview
our two high-end 20X optical zoom PTZ cameras: BY-PTZ-8WIFS (8.0MP) and BY-PTZ-5WIF (5.0MP).
Both models are designed for professional surveillance scenarios, integrating 4G, WIFI and wired network connectivity,
intelligent auto-tracking, and high-definition imaging technology. They deliver ultra-clear video capture, all-weather monitoring, and flexible remote access, meeting the diverse needs of commercial, industrial and outdoor surveillance.
Core Key Features
Universal Core Features for Both Models
20X optical zoom with auto focus, fast zoom speed (≈3s from wide to tele)
True Day/Night mode with IR Cut Filter, 150m IR night vision distance
Advanced image enhancement: 3D DNR, Digital WDR (≥100dB), Backlight Compensation, AGC
3D intelligent positioning, 254 programmable presets, 8 Patrol & 8 Pattern PTZ functions
Intelligent auto-tracking (supports zoom in/out during tracking) + human detection alarm
Dual-stream encoding (H.265+/H.265/H.264 Main Profile), simultaneous video streams
Multi-network connectivity: 4G, WIFI, and net-cable
Colorful video capture in both day and night scenarios
Model-Specific Highlight
BY-PTZ-8WIFS: 8.0MP high-resolution imaging, 1/2.8” Progressive Scan CMOS
BY-PTZ-5WIF: 5.0MP high-performance imaging, 1/2.9” Progressive Scan CMOS
Key Functional Advantages
1. Intelligent Surveillance
Auto-tracking: Precisely tracks moving targets with zoom in/out support; human detection triggers instant alarm
3D intelligent positioning: Quick and accurate target locking for efficient monitoring
254 presets + 8 Patrol/8 Pattern: Customizable monitoring routes, no blind spots in key areas
2. Flexible Storage & Access
Optional TF card slot (max 512G) for local video storage
P2P support for Android & iOS: Remote real-time viewing and control via Videolink APP
Motion detection: Triggers recording/alarm when abnormal movement is detected
3. All-Weather Monitoring
150m long-distance IR night vision with colorful night video
Wide working temperature range: -30°C ~ 60°C, Humidity ≤90%RH
IP6X-level anti-interference (implied by outdoor adaptability) and image enhancement for harsh light
4. Multi-Network Connectivity
4G + WIFI + net-cable triple network: Stable connection in outdoor, remote or wired scenarios
No network limitation: Suitable for construction sites, parks, highways, and remote commercial areas
Compatibility & Integration
Network Protocols
Support multiple standard protocols: TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNS, P2P, RTMP
Third-Party Compatibility
Support ONVIF2.6 (standard for IP camera integration)
Private protocol support: XM NVR, Hikvison Protocol
Work with professional surveillance software: iVMS-4200, UC2
Easy Integration
Standard SDK & CGI provided
Seamless integration with other digital surveillance systems
No complex secondary development, suitable for bulk deployment in large-scale projects
Product Summary
Core Value
Our 20X 4G Auto Tracking HD IP PTZ Cameras (BY-PTZ-8WIFS & BY-PTZ-5WIF) combine high-definition imaging, intelligent AI functions,
multi-network connectivity and all-weather adaptability.
Application Scenarios
Outdoor surveillance: Highways, parks, construction sites, parking lots
Commercial surveillance: Malls, hotels, office buildings
Industrial surveillance: Factories, warehouses, power stations
Remote area surveillance: Rural areas, border posts, scenic spots
Competitive Edges
Cost-effective dual-model option (8MP/5MP) for different resolution needs
Rich intelligent functions and easy integration
Stable triple-network connectivity and long-distance night vision
Robust design for harsh working environments
Parameter | BY-PTZ-5FWIF | BY-PTZ-8WIFS |
|---|
Image Sensor | 5.0M Pixels Progressive Scan CMOS | 1/2.8” 8.0M Pixels Progressive Scan CMOS |
Chipset | Mstar SSC30KD+Sony335, 1/2.8″/1/2.9″ CMOS | MStar338Q+IMX415 |
Signal System | PAL/NTSC | PAL/NTSC |
Focal Length | 20X optical (4.8mm-86.4mm)+10X digital | 20X optical (4.8mm-86.4mm)+10X digital |
IR LEDs | 1 Laser IR +8 Smart IR Array +8 White Leds (150m IR distance) | 1 Laser IR +8 Smart IR Array +8 White Leds (150m IR distance) |
Aperture Range | F1.5~F1.9 | F1.5~F1.9 |
Angle of View | 55.3°(Wide)/5.8°(Tele) | 55.3°(Wide)/5.8°(Tele) |
Zoom Speed | Approx 3s (Optical Wide-Tele) | Approx 3s (Optical Wide-Tele) |
Min. Illumination | Color:0.05Lux@(F1.6,AGC ON); B/W:0.01Lux@(F1.6,AGC ON) | Color:0.05Lux@(F1.6,AGC ON); B/W:0.01Lux@(F1.6,AGC ON) |
Wide Dynamic Range | Digital WDR, ≥100dB | Digital WDR, ≥100dB |
Image Resolution | 25FPS@2592×1944; 30FPS@2560×1440/ 2304×1296/1920×1080 | 8MP20FPS@3840×2160; 25FPS@3072×2048/2592×1944; 30FPS@2560×1440/2304×1296/1920×1080 |
Preset Number | 254 | 254 |
Auto Tracking | YES | YES |
TF Card Slot | Optional (512G max) | Optional (512G max) |
Two Way Audio | Optional | Optional |
POE | Optional | Optional |
Video Compression | H.265+/H.265/H.264 Main Profile | Same as left |
Audio Compression | G711A | G711A |
Power Supply | 12VDC2A | 12VDC2A |
Working Temperature/Humidity | -30°C~60°C, ≤90%RH | -30°C~60°C, ≤90%RH |
