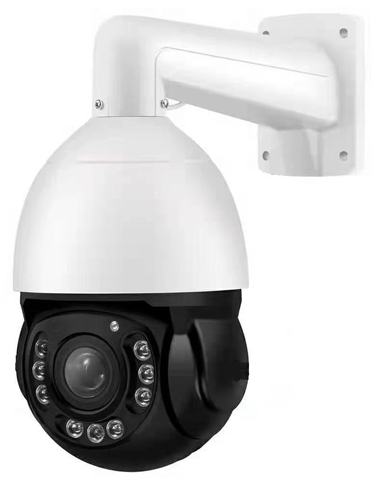

30X Auto tracking HD IP PTZ Camera BY-PTZ-8WKDS and BY-PTZ-5HWK

30X Auto tracking HD IP PTZ Camera

Product Overview

Introduction

We are proud to launch our high-performance 30X Auto Tracking HD IP PTZ Cameras, available in two models:

BY-PTZ-8WKDS (8MP) and BY-PTZ-5HWK (5MP). Designed for professional surveillance scenarios,

these cameras combine ultra-high definition imaging, precise auto-tracking, and powerful zoom capabilities,

delivering reliable and clear video monitoring for various indoor and outdoor applications.

Core Positioning

        High-definition PTZ surveillance with professional zoom performance

        Intelligent auto-tracking for dynamic target monitoring

        All-round adaptability for diverse environmental and technical integration needs

        Cost-effective dual-model selection for different resolution requirements

Core Key Features

✅ Powerful Zoom Performance

          30X optical zoom + 10X digital zoom, auto focus;

          optical wide-to-tele zoom in approximately 3 seconds for quick target capture.

✅ Ultra-HD Image Sensor

       1/2.8” Progressive Scan CMOS; 8.0MP (BY-PTZ-8WKDS) / 5.0MP (BY-PTZ-5HWK) for crystal-clear imaging.

✅ Intelligent Image EnhancementTrue Day/Night mode, 3D DNR, Digital WDR (≥100dB), backlight compensation, auto gain control (AGC);

       color video 24/7 with excellent low-light performance.

✅ Precise PTZ Movement

       360° horizontal rotation, 90° vertical rotation; 254 programmable presets, 8 patrol routes, 8 pattern modes for flexible monitoring.

✅ Advanced Auto Tracking

       Supports auto zoom in/out during tracking; humanoid/vehicle detection with instant alarm for dynamic target monitoring.

✅ Efficient Video Encoding

      H.265+/H.265/H.264 Main Profile dual-stream encoding; simultaneous dual video streams for flexible transmission and storage.

✅ Multi-Platform & Protocol Support

       P2P for Android/iOS (Videolink APP); ONVIF2.6 compliance; rich network protocols for seamless integration.

Intelligent Alarm & Detection Functions

Comprehensive Intelligent Detection

        Humanoid detection & Vehicle detection: Accurate identification of key moving targets

        Motion detection & Shadow alarm: All-round monitoring of abnormal scene changes

        Abnormal system alarm: Network cable break, IP address conflict (real-time fault reminder)

Alarm Feature Advantages

         Instant alarm trigger when detecting human/vehicle targets

        24/7 colorful video capture for clear alarm evidence collection

        Customizable detection sensitivity for different surveillance scenarios

Compatibility & Integration

Network & APP Support

       P2P connection for Android/iOS mobile devices via Videolink APP (remote real-time viewing)

        Rich network protocols: TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNS, P2P, RTMP

Third-Party & Standard Compliance

       ONVIF2.6 compliant (seamless connection with mainstream ONVIF devices)

       Support private protocols: XM NVR, Hikvison Protocol

        Work with professional surveillance software: iVMS-4200, UC2

Easy System Integration

       Standard SDK & CGI provided

       Easily integrated with other digital surveillance systems

       Dual-stream encoding for flexible matching with different transmission/storage systems

Environmental Adaptability & Power Supply

Power Supply

       Standard power input: 12VDC2A (stable power support for long-term operation)

       Optional POE (Ethernet power supply) for simplified wiring and installation

Working Environment

        Wide temperature range: -30°C ~ 60°C (adapt to extreme cold/heat)

       Humidity resistance: ≤90%RH (no condensation impact)

       Suitable for outdoor/indoor surveillance: parking lots, industrial parks, commercial plazas, residential communities, etc.

Model Comparison & Selection Suggestion

Key Similarities

Both models share the same core functions: 30X optical zoom, 150m IR distance, auto tracking, 254 presets, dual-stream encoding, ONVIF2.6 compliance, and the same environmental adaptability.

Core Differences

       BY-PTZ-8WKDS: 8.0MP high-resolution sensor, MStar338Q+IMX415 chipset – ideal for scenarios requiring ultra-high definition image capture (e.g., large commercial plazas, high-end residential areas).

       BY-PTZ-5HWK: 5.0MP sensor, Mstar SSC30KD+Sony335 chipset – cost-effective option with excellent imaging performance, suitable for general surveillance scenarios (e.g., industrial parks, community roads).

Summary & Key Highlights

Core Product Advantages

        Superior Imaging: Ultra-HD (8MP/5MP), excellent low-light performance, professional image enhancement technologies.

        Intelligent Monitoring: 30X auto-tracking with zoom in/out, multi-target detection, instant alarm.

        Flexible PTZ Operation: 360° horizontal/90° vertical rotation, 254 presets, 8 patrol/pattern modes.

        Seamless Integration: ONVIF2.6, standard SDK/CGI, multi-protocol support, mobile P2P.

        Extreme Adaptability: -30°C~60°C working temperature, 150m IR distance, optional POE/2-way audio/TF card.

Final Conclusion

Our 30X Auto Tracking HD IP PTZ Cameras (BY-PTZ-8WKDS & BY-PTZ-5HWK) are the perfect combination of HD imaging, intelligent tracking,

and all-round adaptability. With dual-model selection, they can meet the diverse surveillance needs of different scenarios,

providing a reliable, high-performance, and cost-effective professional surveillance solution for customers.
