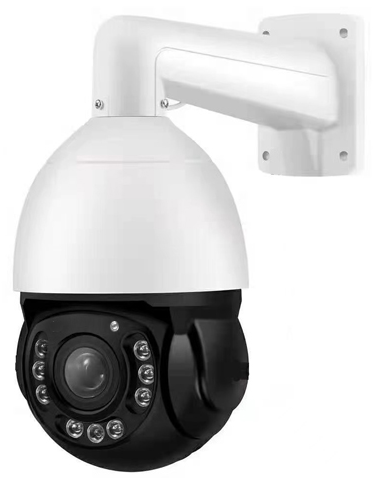

20X Auto tracking HD IP PTZ Camera (BY-PTZ-5FGD & BY-PTZ-8HFGS)

20X Auto tracking HD IP PTZ Camera

Product Overview

Our 20X Auto Tracking HD IP PTZ Cameras (BY-PTZ-5FGD & BY-PTZ-8HFGS) are professional surveillance devices designed for high-definition,

all-weather, and intelligent monitoring.

Equipped with high-performance CMOS image sensors, ultra-high zoom capability, and advanced intelligent tracking technology,

these cameras deliver clear, stable video footage in various lighting and environmental conditions.

They support multiple encoding formats, seamless system integration, and rich intelligent alarm functions,

making them ideal for security monitoring in commercial, industrial, residential, and public areas.

Two models are available to meet different resolution requirements: 5.0MP (BY-PTZ-5FGD) and 8.0MP (BY-PTZ-8HFGS),

with consistent high-end performance and functional design.

Core Key Features

Optical & Digital Zoom

       20X optical zoom + 10X digital zoom, auto focus

       Focal length: 4.8mm - 86.4mm; fast optical zoom (Wide-Tele in approx 3s)

       55.3° wide-angle to 5.8° telephoto, flexible monitoring for close and long distances

High-Definition Imaging

       High-quality CMOS sensors: 5.0MP (BY-PTZ-5FGD) / 8.0MP (BY-PTZ-8HFGS) (1/2.8” progressive scan)

       True Day/Night mode with IR Cut Filter; colorful video day and night

        Low illumination performance: Color 0.05Lux@(F1.6, AGC ON), B/W 0.01Lux@(F1.6, AGC ON)

Image Enhancement

       3D DNR, Digital WDR (≥100dB), backlight compensation, auto gain control (AGC)

       Multiple white balance modes, adjustable shutter speed (1/2 - 1/20,000s)

       S/N ratio ≥50dB (AGC OFF), clear imaging with low noise

PTZ Movement

      360° horizontal rotation, 90° vertical rotation

      254 programmable presets, 8 patrol routes, 8 pattern modes

      3D intelligent positioning for accurate target tracking

Core Key Features

Video & Audio Encoding

       Dual-stream encoding: H.265+/H.265/H.264 Main Profile

       Two simultaneous video streams, adjustable bitrate (32Kbps~10Mbps, CBR/VBR)

       Audio compression: G711A; optional two-way audio for real-time communication

Intelligent Functions

      Auto tracking with zoom in/out support

      Multi-type intelligent alarm: Humanoid/ Vehicle/ Motion detection, shadow alarm, network cable break, IP address conflict

       4-area privacy zone masking for sensitive area protection

Storage & Connectivity

      Optional TF card slot (max 512G) for local video storage

      Optional POE power supply for flexible installation

       P2P support for Android & iOS; dedicated APP - Videolink for remote monitoring

Compatibility

       Support ONVIF2.6, standard SDK & CGI for easy integration with other digital systems

       Rich network protocols & private protocol support (XM NVR, Hikvison), work with iVMS-4200, UC2

Intelligent Functions & Compatibility

1. Intelligent Monitoring & Alarm

       Auto Tracking: Automatically track moving targets with zoom in/out, ensure no missing of key objects

       Multi-detection: Humanoid, vehicle and motion detection for accurate threat identification

       Abnormal alarm: Real-time alert for shadow change, network cable break and IP address conflict

       OSD Support: Customizable zoom, camera name and time display with adjustable OSD position

2. Strong Compatibility & Integration

       Network Protocols: TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNS, P2P, RTMP

       Standard Support: ONVIF2.6, standard SDK and CGI for seamless integration with third-party digital systems

       Private Protocol: Support XM NVR and Hikvison private protocols, compatible with iVMS-4200, UC2

       Mobile Access: P2P technology for Android and iOS; Videolink APP for remote real-time viewing and control

Environmental Adaptability

All-Weather Working Capability

       Wide temperature range: -30°C ~ 60°C, suitable for cold northern and hot southern regions

       Humidity resistance: ≤90%RH, no fogging or malfunctions in humid environments (e.g., coastal, rainy areas)

       IR Night Vision: 150m long-distance IR illumination with Laser IR + Smart IR Array LEDs, clear B/W video in complete darkness

       True Day/Night Mode: IR Cut Filter ensures colorful high-definition video in daytime and high-sensitivity B/W video at night

Flexible Installation & Power Supply

       Optional POE power supply, no need for additional power lines, easy for wired network installation

       12VDC2A standard power supply, stable power input for long-term operation

        Compact design with 360° horizontal rotation, adaptable to ceiling, wall and pole installation in various scenarios

Summary & Core Advantages

Product Highlights

      Ultra-High Zoom & Clear Imaging:

              20X optical +10X digital zoom, 5MP/8MP high resolution, low illumination performance for all-distance and all-lighting monitoring

       Intelligent Auto Tracking: 3D intelligent positioning, auto tracking with zoom, 254 presets for accurate and efficient target monitoring

       All-Weather Reliability: Wide temperature/humidity adaptability, 150m IR night vision, True Day/Night mode for 24/7 stable work

        Seamless Integration: ONVIF2.6, standard SDK/CGI, rich protocols support, easy to connect with existing surveillance systems

        Rich Customization: Optional TF card, two-way audio, POE; 4-area privacy masking, adjustable OSD, meet diverse user needs

Application Scenarios

       Commercial areas: Malls, supermarkets, hotels, office buildings

        Industrial sites: Factories, warehouses, construction sites

        Public places: Parks, squares, roads, railway stations
