BY-IVS-PTZ8K Waterproof 3 inch HD IP 5X PTZ Camera
Product Overview
The BY-IVS-PTZ8K is a high-performance waterproof 3 inch HD IP PTZ camera with a mixed metal + plastic construction,
designed for professional video surveillance scenarios.
It combines 8.0MP ultra-high definition imaging, 5X optical zoom, and intelligent AI detection functions,
with comprehensive video processing and transmission technologies. Suitable for a variety of indoor and outdoor surveillance needs,
it features stable performance, rich functions and easy integration.
ore Key Features
5X optical zoom with auto focus for flexible and clear shooting at different distances
1/2.7” 8.0MP Progressive Scan CMOS sensor for ultra-high definition image output
True Day/Night mode with IR Cut Filter, 3D DNR and Digital WDR (≥100dB) for excellent imaging in low-light and high-contrast environments
Backlight compensation & auto gain control (AGC) for optimized image quality in complex light conditions
3D intelligent positioning: Click centering & Zoom by mouse dragging for precise operation
Wide pan/tilt range: Vertical 90°, Horizontal 355° for full-range surveillance
24/7 colorful video output for clear visual information
AI humanoid & vehicle detection for intelligent alarm and accurate monitoring
Two-way audio & motion detection for interactive and real-time security alert
Product Advantages Summary
Ultra-high Definition: 8.0MP 4K UHD imaging for clear and detailed video
Flexible Surveillance: 5X optical zoom, 355° horizontal & 90° vertical pan/tilt for full coverage
Excellent Low-light Performance: IR 35M, 0.001Lux B/W illumination for clear night vision
Intelligent Monitoring: AI humanoid/vehicle detection, 3D positioning for efficient security
Easy Integration: ONVIF, standard SDK/CGI, compatible with mainstream NVR brands
Convenient Use: P2P for mobile remote control, POE support, two-way audio
Rugged & Durable: Wide temperature range, waterproof design for harsh environments
Flexible Storage: Dual-stream encoding + optional 128G TF card for local/remote storage
Model No. | BY-IVS-PTZ8K |
Image sensor | 8.0M Pixels Progressive Scan CMOS |
Chipset | H.265+,SSC378DE+GC8613, 1/2.7" CMOS |
Signal System | PAL/NTSC |
Focal length | 2.8-12mm,5X |
LEDS | 9pcs IR led, 9pcs white led, IR Distance 35M |
Aperture Range | F1.7~F3.0 |
Angle of View | 113.9°（Wide）/34.1°（Tile） |
Zoom speed | Approx 3s(Optical Wide-Tile) |
Image | 3840x2160 |
Main stream: 20@FPS(3840×2160), 25FPS@(3072×2048）
30FPS@（2592×1944,2560×1440,2304×1296,1920×1080
sub-stream:25FPS@720×480,D1,VGA,640×360 |
Min. Illumination | Color：0.01Lux@(F1.6，AGC ON) B/W：0.001Lux@(F1.6，AGC ON) |
Wide dynamic range | Digital WDR，≥100dB |
S / N ratio | ≥50dB（AGC OFF） |
AGC | Auto / Manual |
White balance | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
Digital noise Reduction | DNR,3DNR |
Exposure mode | Auto/Manual/shutter mode（shutter range variable） |
Shutter speed | 1/2 - 1/20,000s |
Day & Night | Day / Night / External control（IR Cut Filter） |
POE | YES |
TF card slot | Optional （128G Max） |
Two way audio | YES |
AI function | Humanoid detection, Vehicle detection |
3D Positioning | Click centering, Zoom by mouse dragging |
Streams | Dual streams |
Bitrate | CBR/VBR, bit-rate：32Kbps~10Mbps variable |
Video Compression | H.265/H.264 Main Profile |
Audio Compression | G711 |
OSD | Support zoom、camera name、time display，OSD position can be adjusted |
P2P | Android、IOS |
Motion detect | Support |
Privacy Zone Masking | 4 privacy masks programmable |
Protocol | TCP/IP，HTTP， NTP，IGMP， DHCP，UDP，SMTP，RTP，RTSP，ARP，DDNS，DNS，P2P,Support Private protocol XM NVR,Hikvison and dahua NVR |
Power Supply | DC12V2A |

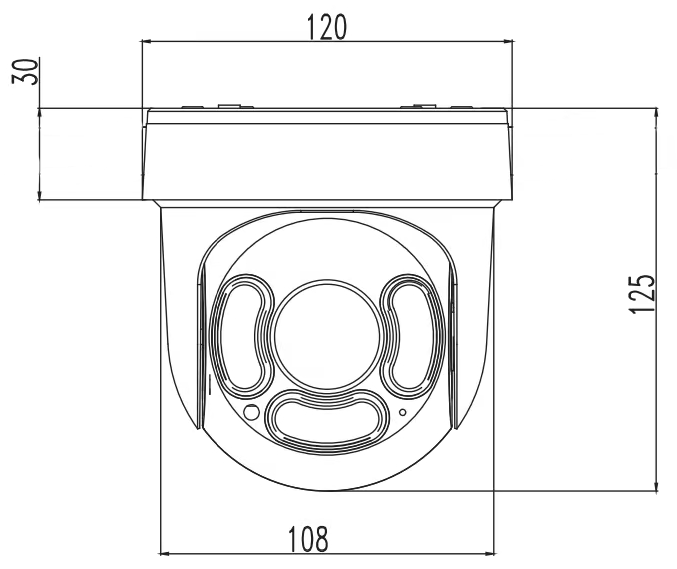

Package size | 150x150x130mm |
Working Temperature | -30°C ~60°C, Humidity≤90%RH |
