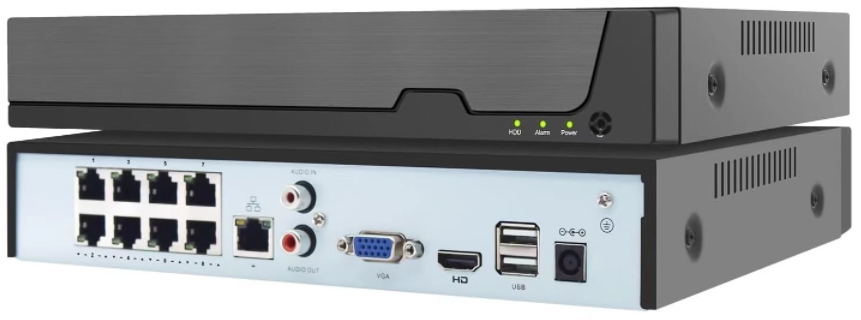

BY-NVR2008P 8CH POE Embedded NVR

BY-NVR2008P 8CH POE Embedded NVR

Slide 1: Title Page

BY-NVR2008P 1 Disk 8CH POE Embedded NVR

High-Efficiency HD Video Surveillance Solution

Tailored for Small-Scale Scenarios: Stores, Warehouses, Offices & Homes

Simple Operation • Stable Performance • Smart Remote Monitoring

Slide 2: Product Overview

The BY-NVR2008P is a user-friendly, commercial-grade 8-channel POE embedded NVR, exclusively designed for small-scene video surveillance needs including retail stores, small warehouses, offices and residential spaces.

It supports high-definition IPC access and integrates core surveillance functions: real-time video preview, 24/7 continuous recording, video playback and forward. Equipped with mobile phone remote monitoring and P2P traversal service, it realizes APP second connection for remote preview and recording playback, breaking the space limit of surveillance and making HD video monitoring simple and accessible.

With embedded LINUX architecture and pure hardware decoding, the product features high stability and low power consumption, meeting the long-term operation requirements of various small commercial and residential scenarios.

Slide 3: Core Highlight Advantages

1. Plug-and-Play HD Access

           Supports 8×12MP ultra-HD IPC access, dual stream for each channel

           Auto search & one-click add, zero debugging for quick deployment

           280Mbps high access bandwidth, smooth transmission of HD video

2. Powerful PoE Power Supply & Transmission

           8×IEEE802.3at PoE ports, max 30W output per port

           120m standard transmission, supports 250m ultra-long cable transmission

           One cable for power and network, reduces wiring cost and complexity

3. Advanced Video Decoding & Playback

           Supports H.265+/H.265/H.264 multi-format decoding, high compression ratio saves storage

           Max 3840×2160 (4K) recording resolution, clear HD imaging

           Local playback: 1CH 12MP/8MP or 4CH 4MP, flexible for different needs

4. Flexible Remote Monitoring & Operation

           Second connection with Videolink client and mobile APP

           Real-time remote preview, recording playback and device control

           Supports Videolink cloud service, more secure and convenient data management

5. Diverse Storage & Reliable Backup

           1×SATA interface, max 8TB single hard disk capacity

           Schedule recording + motion detection linkage recording, intelligent storage

           USB external storage backup (U disk, portable hard disk), double insurance for data

6. Wide Environmental Adaptability

           Working temperature: -10℃～+55℃, working humidity: 10%～90%

           Embedded watchdog function, automatic fault recovery for stable operation

           DC 12V/2A power supply, low power consumption and high compatibility

Slide 4: Typical Application Scenarios

The BY-NVR2008P is a cost-effective surveillance solution with simple deployment and easy maintenance, perfectly matching the video monitoring needs of various small-scale scenarios:

Retail Stores

Convenience stores, clothing shops, grocery stores, small supermarkets – real-time monitoring of store operation and goods safety

Small Warehouses

Mini logistics warehouses, personal storage warehouses, small workshops – guard against theft and monitor goods storage status

Office Spaces

Small offices, home offices, co-working spaces – monitor office environment and ensure property safety

Residential Use

Villas, apartment buildings, family courtyards – home security monitoring, real-time grasp of family environment

Slide 5: Product Core Value & Summary

Core Value

✅ Simplify Deployment: Plug-and-play design, zero debugging, one cable for power and network, greatly reducing installation and maintenance cost✅ Ultra-HD Experience: 12MP HD access and 4K recording, clear imaging for detailed surveillance✅ Smart Remote: APP second connection, real-time remote monitoring, break through space restrictions✅ Stable & Reliable: Embedded LINUX + watchdog, 24/7 stable operation, adapt to complex environmental conditions✅ Cost-Effective: Integrate multiple powerful functions, meet all surveillance needs of small scenarios with high cost performance

Product Summary

The BY-NVR2008P is a scenario-oriented embedded NVR that focuses on the actual surveillance needs of small commercial and residential spaces. It takes "easy operation, stable performance and smart remote" as the core, and integrates HD access, powerful PoE, diverse storage and wide adaptability.

It is the first choice for small-scale video surveillance with its high cost performance and humanized design, providing a comprehensive and reliable HD video surveillance solution for stores, warehouses, offices and families.
