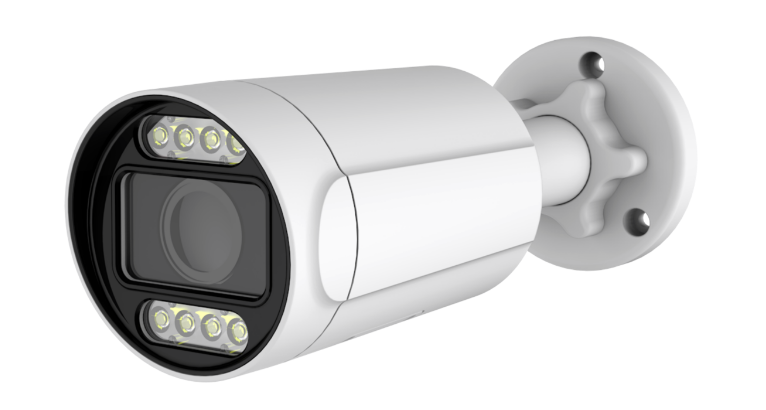

12MP/ 8MP & 5MP AI Audio Alarm POE IP Camera
Product Overview
Product Name: 12MP/ 8MP & 5MP AI Audio Alarm POE IP Camera
Core Positioning: Professional HD network security camera with intelligent audio alarm and POE support
Design Highlights: Small, elegant, and delicate appearance, tailored for both home and commercial security needs
Material Advantage:
Crafted with aluminum alloy and an innovative patented heat dissipation structure, ensuring stable operation under high temperatures
Core Functions
Intelligent Detection & Alarm:
Human Detection: Triggers audio alarm only when humans are detected, avoiding false alarms from objects or animals
Motion Detection: Activates audio alarm for any moving targets
Multiple Alarm Triggers: Also supports shadow alarm, network cable break alarm, and IP address conflict alarm
Audio Capabilities:
Built-in 23mm large loudspeaker for high-volume audio alerts
Built-in microphone enables two-way audio communication
Customizable Alert Voice: Choose from pre-recorded audios or record your own
POE Support: Simplifies installation with Power over Ethernet, no separate power cable needed
Key Features
HD Imaging & Night Vision:
12MP/8MP/5MP high resolution for crystal-clear video
HD CS lens with 2.8mm fixed focus and IR-CUT dual optical filters for auto day/night switching
optional warmlight LEDs or IR LEDs, providing 40~45m effective night vision
Advanced Video Technology:
H.265+/H.265/H.264 compression technology for efficient storage and transmission
3D DNR, auto white balance, auto electronic shutter, and auto electronic gain for real color reproduction and high-resolution images
Network & Compatibility:
ONVIF 2.4 protocol and complete SDK pack for easy integration
Supports RTSP/FTP/PPPoE/DHCP/DDNS/NTP/UPnP network protocols
Remote monitoring via WEB, client software, mobile devices (iOS/Android),
Reliability:
Comprehensive lightning protection (power, network, POE)
Wide working temperature range: -35℃ ~ 60℃, humidity < 95% (no condensation)
Specification | BY-IP12XKS | BY-IP8XKS | BY-IP5XKS |
Imaging Sensor | SSC539+IMX577 | MStar328Q+ IMX415 | MSTAR316DM+GC4653 |
Scanning Mode | Progressive Scanning | Progressive Scanning | Progressive Scanning |
Illumination | Color: 0.01Lux@F1.2Black/ White: 0.0001Lux@F1.20 Lux (IR on) | Color: 0.01Lux@F1.2Black/
White: 0.0001Lux@F1.20 Lux (IR on) | Color: 0.01Lux@F1.2Black/ White: 0.0001Lux@F1.20 Lux (IR on) |
Lens | 2.8mm Standard Lens | 2.8mm Standard Lens | 2.8mm Standard Lens |
Day & Night
| Auto IR-CUT dual optical filter switching | Auto IR-CUT dual optical filter switching | Auto IR-CUT dual optical filter switching |
DNR | 3D-DNR | 3D-DNR | 3D-DNR |
IR Source | 8 AI ColorVu LEDs | 8 AI ColorVu LEDs | 8 AI ColorVu LEDs |
Night Vision
| Up to 40m | Up to 40m | Up to 40m |
Image Compression | H.265+/H.265/H.264 | H.265+/H.265/H.264 | H.265+/H.265/H.264 |
Video Compression | H.265+/H.265/H.264, dual-stream support (AVI format), adjustable bitrate (0.1M~12Mbps), CBR/VBR support, PAL/NTSC compatible | H.265+/H.265/H.264, dual-stream support (AVI format), adjustable bitrate (0.1M~12Mbps), CBR/VBR support, PAL/NTSC compatible | H.265+/H.265/H.264, dual-stream support (AVI format), adjustable bitrate (0.1M~12Mbps), CBR/VBR support, PAL/NTSC compatible |
Frame Rate | 12MP@30fps, 8MP@30fps, 5MP@25fps, 5~30fps adjustable | 8MP@30fps, 5MP@25fps, 5~30fps adjustable | 5MP@25fps, 5~25fps adjustable |
Interface Protocol | ONVIF 2.4 | ONVIF 2.4 | ONVIF 2.4 |
Network Connection | 1×RJ45 10/100M adaptive Ethernet port; supports RTSP/FTP/PPPoE/DHCP/DDNS/ NTP/UPnP | 1×RJ45 10/100M adaptive Ethernet port; supports RTSP/FTP/PPPoE/DHCP/DDNS/ NTP/UPnP | 1×RJ45 10/100M adaptive Ethernet port; supports RTSP/FTP/PPPoE/DHCP/DDNS/ NTP/UPnP |
Intelligent Alarm | Human body detection, vehicle detection, motion detection, shadow alarm, network cable disconnection alert, IP address conflict warning | Human body detection, vehicle detection, motion detection, shadow alarm, network cable disconnection alert, IP address conflict warning | Human body detection, vehicle detection, motion detection, shadow alarm, network cable disconnection alert, IP address conflict warning |
POE | Yes | Yes | Yes |
Lightning Protection | Integrated power, network and POE lightning protection;
| Integrated power, network and POE lightning protection;
| Integrated power, network and POE lightning protection;
|
Core Features | Web-based configuration, OSD, real-time video transmission, human/ motion detection; PC remote surveillance client support; iOS/Android mobile monitoring; complete SDK package provided | Web-based configuration, OSD, real-time video transmission, human/ motion detection; PC remote surveillance client support; iOS/Android mobile monitoring; complete SDK package provided | Web-based configuration, OSD, real-time video transmission, human/ motion detection; PC remote surveillance client support; iOS/Android mobile monitoring; complete SDK package provided |
Power Input | DC 12V±10% | DC 12V±10% | DC 12V±10% |
Power Consumption | 1W (IR off) / 9.5W (IR on) | 1W (IR off) / 9.5W (IR on) | 1.1W (IR off) / 9.6W (IR on) |
Working Environment | -35℃ ~ 60℃, ≤95% humidity (non-condensing) | -35℃ ~ 60℃, ≤95% humidity (non-condensing) | -35℃ ~ 60℃, ≤95% humidity (non-condensing) |
