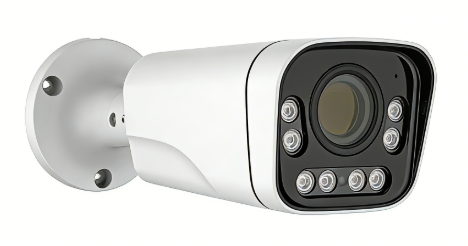

12MP/ 8MP & 5MP AI Audio Alarm POE IP Camera
12MP/8MP & 5MP AI Audio Alarm POE IP Camera
Product Overview
Product Name: 12MP/8MP & 5MP AI Audio Alarm POE IP Camera
Core Positioning:
Professional high-definition network security camera integrated with intelligent audio alarm and POE functionality
Design Highlights:
Boasts a compact, sleek and exquisite appearance, specially engineered to meet both residential and commercial security requirements
Material Advantages: Constructed with high-grade aluminum alloy and an innovative patented heat dissipation structure,
ensuring consistent and stable operation even under high-temperature conditions
Core Functions
Intelligent Detection & Alarm
Human Detection:
Triggers audio alarm exclusively upon human detection, effectively eliminating false alarms caused by inanimate objects or animals
Motion Detection: Activates audio alarm in response to any moving targets within the monitoring range
Multi-trigger Alarm Modes:
Also supports shadow alarm, network cable disconnection alarm and IP address conflict alarm for all-round security monitoring
Audio Capabilities
Equipped with a built-in 23mm large-caliber speaker that delivers high-volume, clear audio alerts
Integrated microphone enables seamless two-way audio communication
Customizable Alert Voice: Users can select from pre-recorded audio prompts or record personalized voice alerts as needed
POE Support
Power over Ethernet (POE) technology streamlines the installation process,
eliminating the need for a separate power cable and reducing wiring complexity.
Key Features
HD Imaging & Night Vision
12MP/8MP/5MP ultra-high resolution for crystal-clear, detailed video capture
Adopts HD CS lens with 2.8mm fixed focus and IR-CUT dual optical filters, enabling automatic day and night mode switching
Optional warm light LEDs or IR LEDs provide an effective night vision range of 40~45 meters
Progressive scanning for smooth, blur-free imaging;
minimum illumination of 1.0Lux (color) @F1.2 and 0.1Lux (black/white) @F1.2 for clear shooting in low-light environments
Advanced Video Technology
Supports H.265+/H.265/H.264 video compression technologies, optimizing storage space and transmission efficiency
3D DNR (Digital Noise Reduction), auto white balance, auto electronic shutter and auto electronic gain work in tandem
to restore true colors and deliver high-definition, sharp images
Dual-stream video coding in AVI format; adjustable bit rate from 500k to 8M bps, compatible with both PAL and NTSC standards
High frame rate performance:
12MP@30fps, 8MP@30fps, 5MP@25fps; 3MP and below at a default 25fps, adjustable from 1~25fps as required
Network & Compatibility
Complies with ONVIF 2.4 protocol and comes with a complete SDK package for easy integration with third-party systems
Supports a full range of network protocols including RTSP/FTP/PPPoE/DHCP/DDNS/NTP/UPnP
Realizes flexible remote monitoring via WEB browser, dedicated client software and mobile devices (iOS/Android)
Configurable through WEB and OSD (On-Screen Display); supports real-time video transmission and cloud service access
Reliability & Durability
Comprehensive Lightning Protection:
Built-in lightning protection for power supply, network and POE,
Wide Operating Temperature Range:
Functions stably in temperatures ranging from -35℃ to 60℃, with humidity resistance of < 95% (no condensation)
Low power consumption: Ultra-low power draw in standby mode with IR off, and optimized power usage when IR is activated
Technical Specifications by Model
Specification | BY-IP12WQS | BY-IP8WQS | BY-IP5WQS |
Imaging Sensor | SSC539+IMX577 | MStar328Q+ IMX415 | MSTAR316DM+GC4653 |
Scanning Mode | Progressive Scanning | Progressive Scanning | Progressive Scanning |
Illumination | Color: 0.01Lux@F1.2Black/ White: 0.0001Lux@F1.20 Lux (IR on) | Color: 0.01Lux@F1.2Black/
White: 0.0001Lux@F1.20 Lux (IR on) | Color: 0.01Lux@F1.2Black/ White: 0.0001Lux@F1.20 Lux (IR on) |
Lens | 3.6~11mm Motorized Varifocal Lens | 3.6~11mm Motorized Varifocal Lens | 2.8~12mm Motorized Varifocal Lens |
Day & Night Switch | Auto IR-CUT dual optical filter switching | Auto IR-CUT dual optical filter switching | Auto IR-CUT dual optical filter switching |
DNR | 3D-DNR | 3D-DNR | 3D-DNR |
IR Source | 8 AI ColorVu LEDs | 8 AI ColorVu LEDs | 8 AI ColorVu LEDs |
Night Vision | Up to 40m | Up to 40m | Up to 40m |
Image Compression | H.265+/H.265/H.264 | H.265+/H.265/H.264 | H.265+/H.265/H.264 |
Video Compression | H.265+/H.265/H.264, dual-stream support (AVI format), adjustable bitrate (0.1M~12Mbps), CBR/VBR support, PAL/NTSC compatible | H.265+/H.265/H.264, dual-stream support (AVI format), adjustable bitrate (0.1M~12Mbps), CBR/VBR support, PAL/NTSC compatible | H.265+/H.265/H.264, dual-stream support (AVI format), adjustable bitrate (0.1M~12Mbps), CBR/VBR support, PAL/NTSC compatible |
Frame Rate | 12MP@30fps, 8MP@30fps, 5MP@25fps, 5~30fps adjustable | 8MP@30fps, 5MP@25fps, 5~30fps adjustable | 5MP@25fps, 5~25fps adjustable |
Interface Protocol | ONVIF 2.4 | ONVIF 2.4 | ONVIF 2.4 |
Network Connection | 1×RJ45 10/100M adaptive Ethernet port; supports RTSP/FTP/PPPoE/DHCP/DDNS/ NTP/UPnP | 1×RJ45 10/100M adaptive Ethernet port; supports RTSP/FTP/PPPoE/DHCP/DDNS/NTP/UPnP | 1×RJ45 10/100M adaptive Ethernet port; supports RTSP/FTP/PPPoE/DHCP/DDNS/ NTP/UPnP |
Intelligent Alarm | Human body detection, vehicle detection, motion detection, shadow alarm, network cable disconnection alert, IP address conflict warning | Human body detection, vehicle detection, motion detection, shadow alarm, network cable disconnection alert, IP address conflict warning | Human body detection, vehicle detection, motion detection, shadow alarm, network cable disconnection alert, IP address conflict warning |
POE | Yes | Yes | Yes |
Lightning Protection | Integrated power, network and POE lightning protection;
| Integrated power, network and POE lightning protection;
| Integrated power, network and POE lightning protection;
|
Core Features | Web-based configuration, OSD, real-time video transmission, human/ motion detection; PC remote surveillance client support; iOS/Android mobile monitoring; complete SDK package provided | Web-based configuration, OSD, real-time video transmission, human/ motion detection; PC remote surveillance client support; iOS/Android mobile monitoring; complete SDK package provided | Web-based configuration, OSD, real-time video transmission, human/ motion detection; PC remote surveillance client support; iOS/Android mobile monitoring; complete SDK package provided |
Power Input | DC 12V±10% | DC 12V±10% | DC 12V±10% |
Power Consumption | 1W (IR off) / 9.5W (IR on) | 1W (IR off) / 9.5W (IR on) | 1.1W (IR off) / 9.6W (IR on) |
Working Environment | -35℃ ~ 60℃, ≤95% humidity (non-condensing) | -35℃ ~ 60℃, ≤95% humidity (non-condensing) | -35℃ ~ 60℃, ≤95% humidity (non-condensing) |
