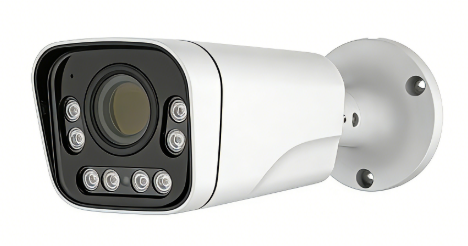

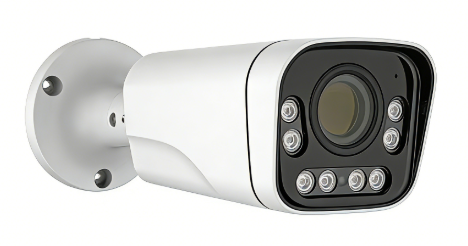

12MP / 8MP / 5MP Motorized 3.6~11mm Varifocal IP Camera BY-IP5CBD Series

12MP / 8MP / 5MP Motorized 3.6~11mm Varifocal IP Camera

Product Overview & Core Advantages

Core Positioning

Professional high-definition network cameras engineered for home security, boasting a compact, sleek and durable metal housing.

Key Advantages

       Ultra-High-Resolution Imaging: 5MP/8MP/12MP resolution options deliver crystal-clear, detailed video footage

       Advanced Heat Dissipation: Patented structural design ensures stable performance even under high-temperature conditions

       Motorized Varifocal Lens: 3.6~11mm motorized varifocal lens integrated with auto IR-CUT filter switching

        24/7 All-Day Surveillance: Equipped with 8 AI ColorVu LEDs for exceptional low-light imaging performance

       Efficient Video Compression: H.265+/H.265/H.264 coding technologies minimize bandwidth and storage consumption

       POE Connectivity: Power over Ethernet support streamlines installation and wiring

Key Features - Imaging & Video

        HD Imaging Technology: 3D DNR (Digital Noise Reduction), auto white balance, and auto electronic shutter/gain work in tandem

        to achieve true color reproduction and sharp, high-resolution imaging.

         Smooth Frame Rates: 12MP @ 30fps, 8MP @ 30fps, 5MP @ 25fps; adjustable frame rate range from 5–30fps

         Flexible Compression Modes: Supports H.265+/H.265/H.264 codecs, dual-stream output in AVI format,

         and adjustable bitrate (0.1M~12Mbps) with CBR (Constant Bit Rate)/VBR (Variable Bit Rate) options.

         Intelligent Day & Night Switch:

         Auto-switching IR-CUT dual optical filters guarantee clear imaging in both bright daylight and low-light night environments.

Key Features - Network & Security

        Broad Network Compatibility: Compliant with ONVIF 2.4 protocol, features 10/100M adaptive Ethernet (RJ45) port,

                                                               and supports RTSP/FTP/PPPoE/DHCP/DDNS/NTP/UPnP network protocols.

         Smart Alarm Triggers: Includes human body detection, vehicle detection, motion detection, shadow alarm,

                                                 network cable disconnection alert, and IP address conflict warning.

          Comprehensive Lightning Protection: Integrated power, network and POE lightning protection,

Physical & Environmental Specifications

        Power Supply: DC 12V ±10%

        Power Consumption: 1W (IR off) / 9.5W (IR on)

        Operating Temperature: -35℃ to 60℃

        Operating Humidity: ≤95% (non-condensing)

Compatible Back-End Solutions

       Web Configuration: Accessible via IE browser, with OSD (On-Screen Display) and real-time video transmission functions.

       PC Remote Surveillance: Dedicated client software for seamless access on desktops and laptops.

       Mobile Monitoring: Full compatibility with iOS (iPhone) and Android mobile devices for on-the-go viewing.

        Custom Integration: Complete SDK package provided to support secondary development and custom system integration.

Application Scenarios

       Residential Premises: Living rooms, courtyards, garages and entryways

       Small-Scale Spaces: Apartments, villas and home offices

       Outdoor Home Areas: Gardens, driveways and perimeter surveillance (featuring a weather-resistant design for outdoor durability)

Conclusion

Summary

The BY-IP5CBD series delivers high-quality, reliable home security surveillance with flexible resolution options to suit diverse needs.

Its POE-enabled design enables hassle-free installation, while 24/7 all-day performance and multi-device access make it

a perfect fit for modern home security requirements. Boasting a robust, durable build and intelligent detection features,

this camera series provides all-round, comprehensive protection for your home
