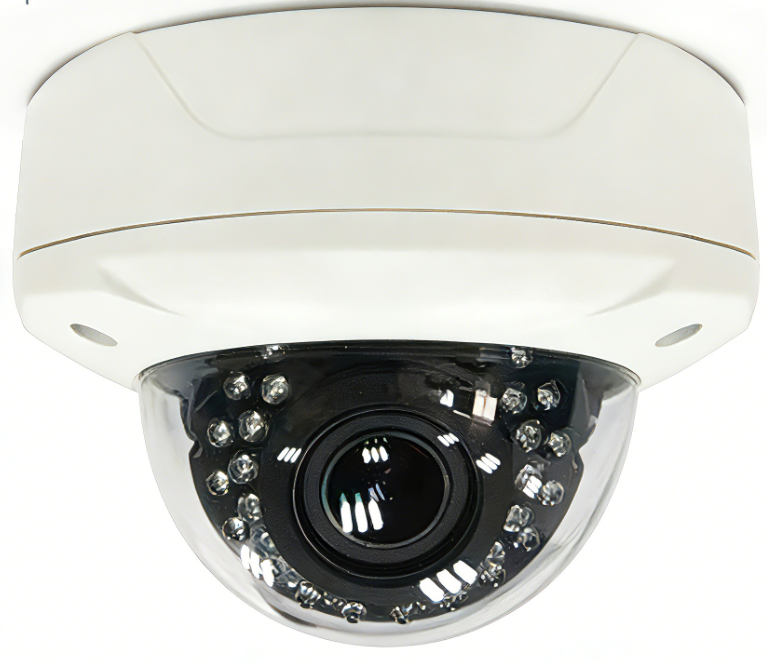

12MP / 8MP / 5MP Motorized 3.6~11mm Varifocal IP Camera BY-IP5GHF Series

12MP / 8MP / 5MP Motorized 3.6~11mm Varifocal IP Camera

12MP/8MP/5MP Motorized 3.6~11mm Varifocal Smart IP Camera

Product Overview & Core Advantages

Core Positioning

Professional high- definition smart network cameras engineered for home security, featuring a compact, sleek and durable metal housing,

and integrated intelligent detection & adaptive imaging technologies for all-round intelligent surveillance.

Key Advantages

       Ultra-HD Intelligent Imaging: 5MP/8MP/12MP resolution options deliver crystal-clear video;

                                                            AI-optimized image processing ensures true color reproduction in all scenes

       Advanced Heat Dissipation: Patented structural design ensures stable intelligent operation even under high-temperature conditions

       Motorized Smart Varifocal Lens: 3.6~11mm motorized varifocal lens with auto IR-CUT filter switch,

                                                                   realizing intelligent day/night adaptive monitoring

        24/7 Intelligent Low-Light Surveillance: 30 IR LEDs enable outstanding low-light performance,

                                                                                0-lux full-color monitoring with IR on for round-the-clock intelligent protection

         Efficient Smart Compression: H.265+ intelligent coding technologies minimize bandwidth and storage consumption without losing video details

        Plug-and-Play POE Installation: Power over Ethernet enables simplified, hassle-free setup, matching the needs of modern smart deployment

   Key Features - Intelligent Imaging & Video

        AI-Enhanced HD Imaging: 3D DNR, auto white balance, and auto electronic shutter/gain with AI scene optimization,

                                                         ensuring true color reproduction and high-resolution imaging in complex light environments

        Smooth Adaptive Frame Rates: 12MP @ 30fps, 8MP @ 30fps, 5MP @ 25fps;

                                                                adjustable frame rate (5~30fps) with intelligent frame rate matching for different surveillance demands

        Flexible Smart Compression: Supports H.265+/H.265/H.264 codecs, dual-stream (AVI format), adjustable bitrate (0.1M~12Mbps) with CBR/VBR;

                                                     intelligent compression saves storage while retaining key details

         Auto Intelligent Day & Night Switch: IR-CUT dual optical filters automatically switch with light sensing,

                                                         guaranteeing clear smart monitoring footage in both bright and low-light environments

   Key Features - Intelligent Network & Security

         Wide Smart Network Compatibility: Compliant with ONVIF 2.4 protocol; 10/100M adaptive Ethernet (RJ45) port,

                                                                            supports RTSP/FTP/PPPoE/DHCP/DDNS/NTP/UPnP for seamless integration with smart home systems

        Multi-Dimensional Intelligent Alarm Systems:

        AI powered human/vehicle detection (accurate target recognition, reducing false alarms), motion detection, shadow alarm,

                                                                              plus intelligent fault alerts (network cable break, IP address conflict) for all-round early warning

         Intelligent Lightning Protection: Integrated power, network and POE lightning protection                                                                                                                                                                                                            ensuring stable operation of intelligent surveillance equipment in harsh weather

Physical & Environmental Specifications

        Power Supply: DC 12V ±10%

        Power Consumption: 1W (IR off) / 9.5W (IR on) (intelligent power saving for low-load operation)

        Operating Temperature: -35℃ to 60℃ (adapts to extreme temperatures for uninterrupted intelligent monitoring)

        Humidity: ≤95% (non-condensing)

Smart Compatible Back-End Solutions

        Web Intelligent Configuration: Accessible via IE browser, supports OSD (On-Screen Display) and real-time video transmission,

                                                                with one-click intelligent parameter setting

        Remote Smart PC Surveillance: Dedicated client software for PC/laptop, enabling remote intelligent control, video playback and alarm push

        Mobile Smart Monitoring: Seamlessly compatible with iPhone (iOS) and Android devices,

                                                         supporting mobile real-time alarm push and remote intelligent lens adjustment

        Custom Smart Integration: Complete SDK package available for secondary development, supporting deep integration with third-                                                                                                                           party smart home platforms and custom intelligent functions

Intelligent Application Scenarios

       Residential Smart Protection: Living rooms, yards, garages and entryways – AI human/vehicle detection

                                                              identifies abnormal targets and triggers real-time alarms

       Small-Scale Smart Spaces: Apartments, villas and home offices – intelligent low-light monitoring ensures safety without disturbing daily life

       Outdoor Smart Perimeter Surveillance: Gardens, driveways and villa perimeters (weather-resistant design) –                                                                                                                                                                                    24/7 intelligent monitoring with lightning protection and extreme temperature adaptation

Conclusion

The BY-IP5GHF series is a high-end intelligent home security camera with flexible ultra-HD resolution options,

integrating AI-powered target detection, adaptive intelligent imaging and multi-scenario smart alarm functions.

Its POE plug-and-play installation simplifies smart home deployment, while 24/7 stable intelligent performance and multi-device smart access

(PC/mobile/third-party platforms) perfectly fit the needs of modern smart home security. Boasting a robust, durable metal design and all-round intelligent protection features, it provides one-stop intelligent surveillance solutions for modern homes, realizing accurate,

real-time and hassle-free home security protection.
