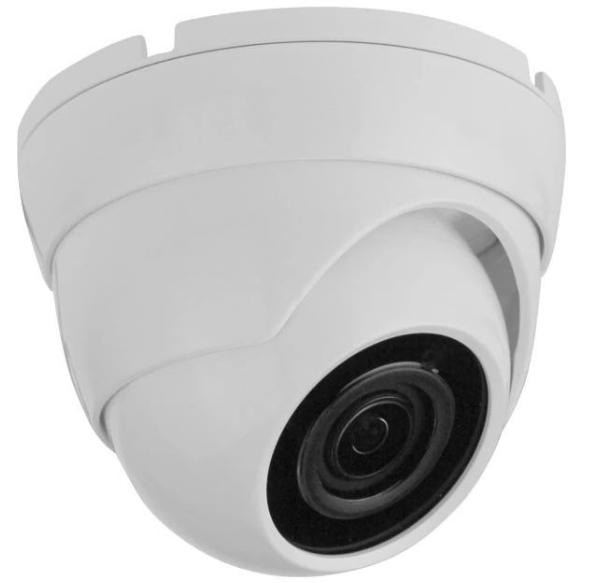

12MP 8MP 5MP Water-proof Dome POE IP Camera
Core Overview
Product Positioning: Compact, elegant, and professional HD network cameras designed for home security.
Key Advantages: Metal material with patented heat dissipation, water-proof design, and 24/7 high-definition monitoring capability.
Model Differentiation: BY-IP12MDS (12MP) and BY-IP8MDS (8MP) and BY-5MDS (5MP) to meet diverse resolution needs.
Hardware Specifications
Imaging & Optics
Resolution: 12.0MP (BY-IP12NWS) / 8.0MP (BY-IP8NWS)/5.0MP (BY-IP5NWS)
Sensors: BY-IP12NWS (SSC539+IMX577); BY-IP8NWS (MStar328Q+IMX415); BY-IP5NWS( MSTAR316DM+GC4653)
Video Compression: H.265+/H.265/H.264
Lens: 2.8mm fixed focus CS lens with IR-CUT auto switch
Night Vision: 36 IR LEDs, effective up to 30 meters
Image Enhancement: 3D-DNR technology for clear images in low-light environments
Video & Compression
Resolution & Frame Rate: 12MP@30fps / 8MP@30fps/5MP@25fps (adjustable 5-30fps)
Compression: H.265+/H.265/H.264 dual-stream (AVI format)
Bitrate: 0.1M~12Mbps adjustable; supports CBR/VBR, PAL/NTSC
Network & Functionality
Connectivity
Interface: 1 RJ45 10/100M adaptive Ethernet port.
Protocols: RTSP/FTP/PPPoE/DHCP/DDNS/NTP/UPnP; ONVIF 2.4 compliance.
POE Support: POE support for easy installation.
Intelligent Features
Alarms: Human/Vehicle Detection, Motion Detection, shadow alarm, cable break/IP conflict alerts.
Software & Compatibility
Web-based configuration with OSD and real-time video transmission.
Support for remote client software and mobile monitoring (iOS/Android).
Complete SDK pack provided for integration.
Basic Parameters
Power Input: DC 12V±10%
Power Consumption: BY-IP12MDS (1W IR off / 9.5W IR on); BY-IP8MDS (1.1W IR off / 9.6W IR on)
Operating Environment: -35℃ ~ 60℃, humidity <95% (no condensation)
Summary
Compact, durable design with efficient heat dissipation and water-proof capability.
24/7 HD monitoring (day/night) and intelligent detection for reliable home security.
Flexible connectivity (POE, mobile/remote access) and easy integration via SDK.
Specification | BY-IP12NWS | BY-IP8NWS | BY-IP5NWS |
Imaging Sensor | SSC539+IMX577 | MStar328Q+ IMX415 | MSTAR316DM+GC4653 |
Scanning Mode | Progressive Scanning | Progressive Scanning | Progressive Scanning |
Illumination | Color: 0.01Lux@F1.2Black/ White: 0.0001Lux@F1.20 Lux (IR on) | Color: 0.01Lux@F1.2Black/
White: 0.0001Lux@F1.20 Lux (IR on) | Color: 0.01Lux@F1.2Black/ White: 0.0001Lux@F1.20 Lux (IR on) |
Lens | 2.8mm Standard Lens | 2.8mm Standard Lens | 2.8mm Standard Lens |
Day & Night Switch | Auto IR-CUT dual optical filter switching | Auto IR-CUT dual optical filter switching | Auto IR-CUT dual optical filter switching |
DNR | 3D-DNR | 3D-DNR | 3D-DNR |
IR Source | 36pcs IR LEDs | 36pcs IR LEDs | 36pcs IR LEDs |
Night Vision | Up to 30m | Up to 30m | Up to 30m |
Image Compression | H.265+/H.265/H.264 | H.265+/H.265/H.264 | H.265+/H.265/H.264 |
Video Compression | H.265+/H.265/H.264, dual-stream support (AVI format), adjustable bitrate (0.1M~12Mbps), CBR/VBR support, PAL/NTSC compatible | H.265+/H.265/H.264, dual-stream support (AVI format), adjustable bitrate (0.1M~12Mbps), CBR/VBR support, PAL/NTSC compatible | H.265+/H.265/H.264, dual-stream support (AVI format), adjustable bitrate (0.1M~12Mbps), CBR/VBR support, PAL/NTSC compatible |
Frame Rate | 12MP@30fps, 8MP@30fps, 5MP@25fps, 5~30fps adjustable |
8MP@30fps, 5MP@25fps, 5~30fps adjustable | 5MP@25fps, 5~25fps adjustable |
Interface Protocol | ONVIF 2.4 | ONVIF 2.4 | ONVIF 2.4 |
Network Connection | 1×RJ45 10/100M adaptive Ethernet port; supports RTSP/FTP/PPPoE/DHCP/DDNS/ NTP/UPnP | 1×RJ45 10/100M adaptive Ethernet port; supports RTSP/FTP/PPPoE/DHCP/DDNS/ NTP/UPnP | 1×RJ45 10/100M adaptive Ethernet port; supports RTSP/FTP/PPPoE/DHCP/DDNS/ NTP/UPnP |
Intelligent Alarm | Human body detection, vehicle detection, motion detection, shadow alarm, network cable disconnection alert, IP address conflict warning | Human body detection, vehicle detection, motion detection, shadow alarm, network cable disconnection alert, IP address conflict warning | Human body detection, vehicle detection, motion detection, shadow alarm, network cable disconnection alert, IP address conflict warning |
POE | Yes | Yes | Yes |
Lightning Protection | Integrated power, network and POE lightning protection; | Integrated power, network and POE lightning protection; | Integrated power, network and POE lightning protection; |
Core Features | Web-based configuration, OSD, real-time video transmission, human/ motion detection; PC remote surveillance client support; iOS/Android mobile monitoring; complete SDK package provided | Web-based configuration, OSD, real-time video transmission, human/ motion detection; PC remote surveillance client support; iOS/Android mobile monitoring; complete SDK package provided | Web-based configuration, OSD, real-time video transmission, human/ motion detection; PC remote surveillance client support; iOS/Android mobile monitoring; complete SDK package provided |
Power Input | DC 12V±10% | DC 12V±10% | DC 12V±10% |
Power Consumption | 1W (IR off) / 9.5W (IR on) | 1W (IR off) / 9.5W (IR on) | 1.1W (IR off) / 9.6W (IR on) |
Working Environment | -35℃ ~ 60℃, ≤95% humidity (non-condensing) | -35℃ ~ 60℃, ≤95% humidity (non-condensing) | -35℃ ~ 60℃, ≤95% humidity (non-condensing) |
