AI ColorVu 12MP 8MP 5MP POE IP Camera
Title Slide

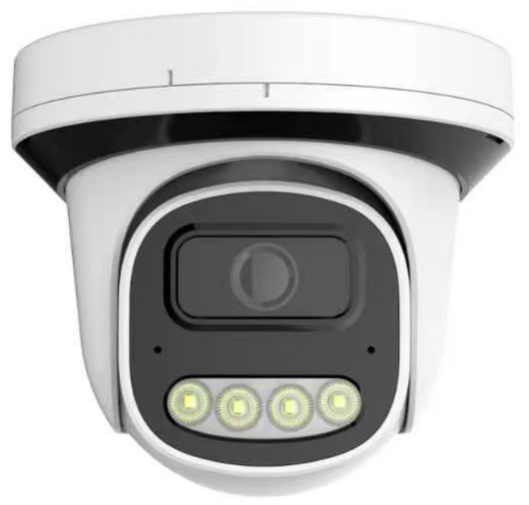

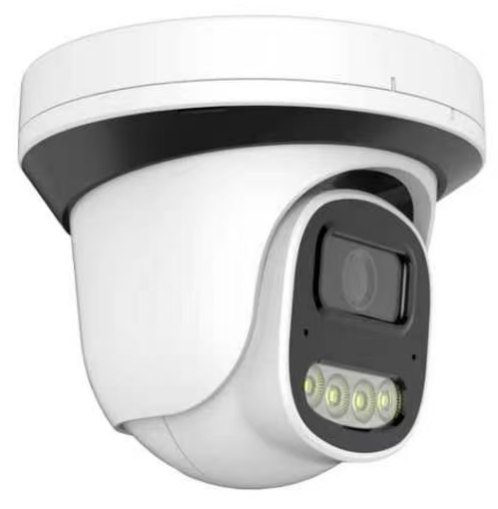

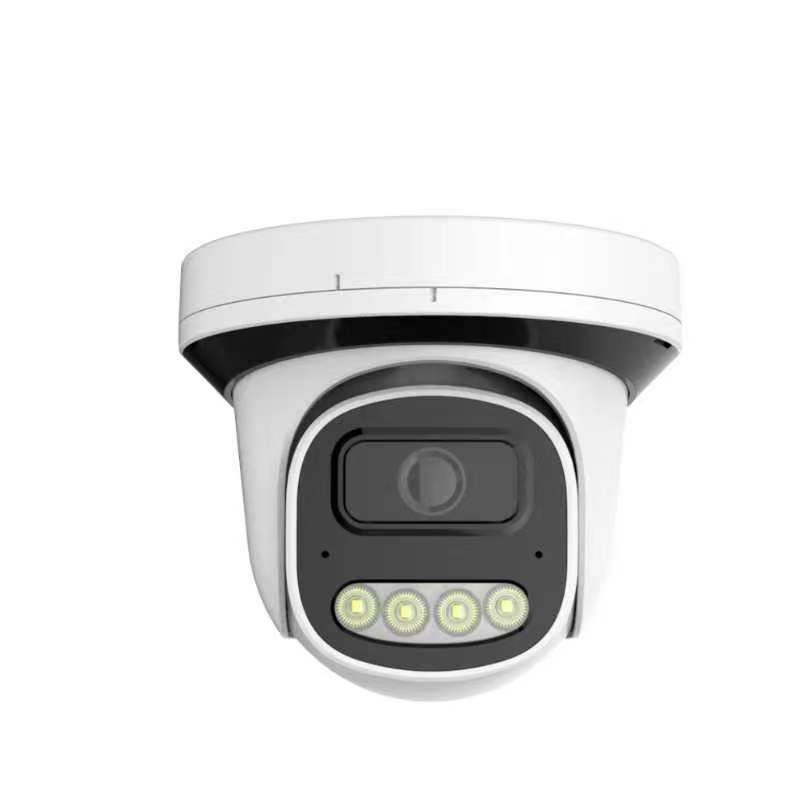

AI ColorVu Series – High-Definition POE IP Camera
Professional Security Solution for Day & Night Monitoring
Overview
Product Line: AI ColorVu Series
Resolutions: 12MP, 8MP, 5MP
Key Feature: Full-color night vision with AI-powered lighting
Design: Compact, stylish, and durable half-metal housing
Ideal For: Home security, business surveillance, and outdoor monitoring
Key Features
High-Resolution Imaging:
12MP, 8MP, and 5MP options for crystal-clear video
AI ColorVu LED Technology:
4 built-in LEDs enable full-color video in low-light conditions
Advanced Video Compression:
H.265+/H.265/H.264 support for efficient storage and streaming
Smart Heat Dissipation:
Patented cooling structure ensures stable performance in high temperatures
Night Vision Range:
Effective distance up to 30 meters
Imaging & Optics
Image Sensor:
IMX577, IMX415, or GC4653 depending on model
Lens:
2.8mm fixed-focus CS lens
Day/Night Mode:
IR-CUT auto-switch for optimal day & night performance
Low-Light Performance:
Color: 1.0 Lux @ F1.2 | B/W: 0.1 Lux @ F1.2
3D DNR & Auto Features:
Digital noise reduction, auto white balance, auto gain, and more
Video & Compression
Video Compression:
H.265+/H.265/H.264 dual-stream support
Bit Rate:
Adjustable from 500 Kbps to 8 Mbps
Frame Rate:
12MP @ 30fps
8MP @ 30fps
5MP @ 25fps
Lower resolutions up to 30fps
Compatibility:
PAL / NTSC supported
Connectivity & Intelligence
Protocols:
ONVIF 2.4 compliant
Network:
10/100M Ethernet, POE support
Smart Alarms:
Human detection, motion detection, tamper alarm, network monitoring
System Integration
Web Configuration:
Easy setup via browser
Remote Monitoring:
Support for Windows client, iPhone, and Android apps
SDK Available:
Full SDK package for custom integration
Backend Software:
Includes IE browser plugin, OSD, real-time streaming, and motion detection
Models Comparison
Model Sensor Resolution Key Feature
BY-IP12TDT SSC338G + IMX577 12MP High-res daylight & night
BY-IP8TDT MStar328Q + IMX415 8MP Balanced performance
BY-IP5TDT MSTAR316DM + GC4653 5MP Cost-effective & reliable
Applications
Residential Security
Retail & Commercial Monitoring
Perimeter Protection
Parking Lot Surveillance
Smart City & Public Safety
Summary
Why Choose AI ColorVu POE IP Cameras?
HD 24/7 surveillance (day & night)
Easy installation (POE support) + multi-device access
Durable, compact design for home use
Intelligent features + full SDK for customization
Model: | BY-IP12TDT | BY-IP8TDT | BY-IP5TDT |
Camera | Imaging sensor: | SSC338G+IMX577 | MStar328Q+IMX415 | MSTAR316DM+GC4653 |
Scanning mode: | Progressive scanning |
Illumination: | color 1.0Lux@F1.2,B/ W 0.1 Lux@F1.2 |
Lens: | Standard with 2.8mm fixed focus CS lens |
Day and night switch: | IR-CUT dual optical filters auto switch in day and night |
DNR: | 3D-DNR |
IR source: | 4pcs AI ColorVu Led |
night vision distance: | effective night vision distance is 30m |
Standard compression | Image compression: | H.265+/H.265/H.264 |
Video compression: | H.265+/H.265/H.264 video coding, support dual stream, AVI format; code stream 500k~8M
bps adjustable, support PAL and NTSC |
Frame rate: | 12MP@30fps, 8MP@30fps, 5MP@25fps, 4MP@30 fps;3MP and below default@25fps, 1~25fps adjustable |
Function | Interface protocol: | ONVIF 2.4 |
Network connection | 1 RJ45, 10/100M Ethernet adaptive interface; support RTSP / FTP / PPPOE / DHCP / DDNS / NTP / UPnP
network protocols |
Intelligent alarm: | Human Body Detection, Motion detection, shadow alarm, network cable break, IP address conflict |
POE: | YES |
Lightning Protection | Power, network, POE comprehensive lightning protection, |
features | configure by WEB, OSD(on screen display), real-time video transmission, motion detection; support remote surveillance client software; support mobile monitoring(Iphone, Android), support cloud service; provide complete SDK pack; |
Basic parameter | Power input: | DC 12V±10% |
Power consumption: | 1W (IR off) / 9.5W (IR on) | 1.1W / 9.6W (IR on) |
Work environment: | -35℃ ~ 60℃, humidity is less than 95% (no condensation) |
