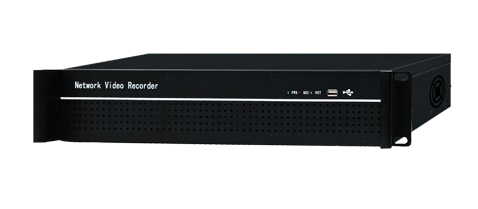

8 Disk 64CH H.265 Embedded NVR BY-NVR2064P

    BY-NVR2064P 8 Disk 64CH H.265 Embedded NVR

BY-NVR2064P 8 Disk 64CH H.265 Embedded NVR—

a highly practical commercial-grade surveillance NVR with easy operation and comprehensive functions.

It is specially designed for stores, small warehouses, offices and family scenarios,

supporting HD IPC access and core surveillance functions such as real-time preview, video recording and playback/forwarding.

What’s more, it is equipped with mobile phone monitoring and traversal service,

realizing APP seconds connection for remote preview and recording playback,

which brings a convenient and efficient surveillance experience for users.

Slide 1: Core System Structure

The BY-NVR2064P adopts a mature and stable system design, with the following core structural features:

. Embedded LINUX design, with high system stability and anti-interference ability

. Pure hardware decode, ensuring smooth processing of high-resolution video streams

. Built-in watchdog, realizing automatic fault recovery and 24/7 uninterrupted operation

. Hard disk storage mode, supporting large-capacity video data preservation

. HDMI HD display + IP network video access, compatible with mainstream HD IPCs in the market

Slide 2: Video Input Specifications

Core Input Parameters

1. Support 64CH 8MP / 36CH 12MP HD IPC access, meeting large-scale and high-definition surveillance needs

2. Each channel supports dual stream access, flexible for bandwidth allocation and scene adaptation

3. Auto search, add, recording and preview functions, no debugging required for quick deployment

4. Ultra-high access bandwidth of 320Mbps,

    ensuring stable transmission of multiple high-definition video streams at the same time

Slide 3: Video Output Specifications

Core Output Parameters

1. 1 channel HDMI output + 1 channel VGA output, homology display with HDMI,

     realizing dual-screen synchronous monitoring

2. Support Videolink client preview and mobile APP preview, with seconds connection for instant remote access

3. Maximum support for 3840×2160 (4K) resolution output, presenting crystal-clear video images

4. Compatible with multi-terminal preview, meeting the needs of local and remote monitoring at the same time

Slide 4: Video Decoding & Playback Capacity

Video Decoding

1. Support H.265+/H.265/H.264 multi-format decoding, H.265+ compression technology effectively saves storage space

2. Adapt to mainstream video coding formats in the market, with strong compatibility

Local Playback

1. NVR local recording playback supports 2CH 12MP / 4CH 8MP / 8CH 4MP

2. Realize simultaneous high-resolution playback of multiple channels,

    improving the efficiency of video review and evidence collection

Slide 5: Audio & Storage Solutions

Audio Function

. Adopt standard G.711 audio codec

. Support synchronous audio and video recording, restoring the complete surveillance scene information

. Realize audio and video preview/playback for HDMI output channel and Videolink client,

   with one-stop audio-visual monitoring experience

Storage Configuration

8*SATA hard disk interfaces, maximum 14TB per hard disk, providing massive storage space for long-term video retention

Support schedule record and motion detection linkage record, saving storage space and improving recording pertinence

Support external USB storage devices (USB flash drive, mobile hard disk) for local data backup, preventing video data loss

Slide 6: Network & Peripheral Interfaces

Network Interface

1. 1*RJ45 Ethernet interface, supporting 10/100M self-adaptive transmission

2. Compatible with mainstream network protocols: TCP/IP, IPv4, DHCP, NTP, RTSP, ONVIF, P2P, SMTP

3. P2P technology simplifies remote access, no complex port mapping required

Peripheral Interface & Front Panel

1. 2*USB2.0 interfaces (rear): support mouse operation, USB local upgrade, and data import/export

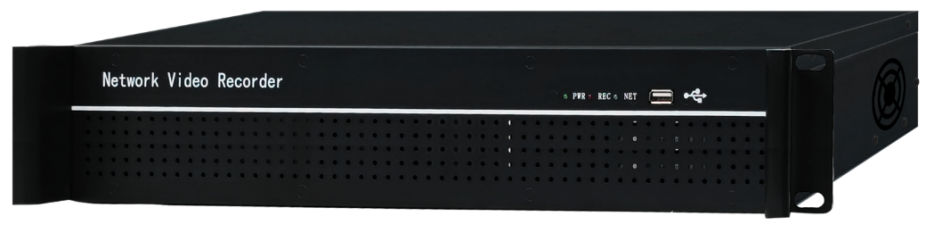

2. Front panel configuration: 1power indicator light, 1record indicator light, 1*network indicator light

3. Real-time display of device working status, convenient for daily operation and maintenance

Slide 7: User Access & Business Functions

User Access

1. Local maximum support for 16 concurrent users

2. Meet the needs of multi-person simultaneous monitoring in enterprises, offices and other scenarios

Rich Business Functions

1. Basic functions: preview, recording, forwarding, remote service

2. Smart linkage: support alarm linkage, timely response to abnormal surveillance situations

3. Software support: compatible with Videolink client remote control software and Videolink cloud service

4. Audio alarm: built-in buzzer, providing audible prompt for device abnormality and alarm events

Slide 8: Environmental & Power Parameters

Working Environment

1. Working Temperature: -10℃ ～ ＋55℃, strong adaptability to different temperature environments

2. Working Humidity: 10% ～ 90%, stable operation in humid or dry working conditions

Power Supply

3. AC110V~240V (50/60hz) ATX power supply

4. Wide voltage range, compatible with power grids of different regions, stable and reliable power support

Slide 9: Core Product Advantages

1. High Compatibility:

    64CH 8MP/36CH 12MP access, multi-format video decoding, fit for various surveillance scales

2. Easy to Use:

    Auto search/add, zero debugging, APP seconds connection, lower operation and deployment threshold

3. Massive Storage:

    8*SATA interfaces (14TB/hard disk), multiple recording modes, flexible data backup

4. Stable & Reliable:

    Embedded LINUX, pure hardware decode, watchdog, wide temperature/humidity adaptability

5. Comprehensive Remote Monitoring:

    Mobile APP + Videolink client/cloud service, real-time remote access anytime and anywhere

6. Humanized Design:

    Multi-user access, audio-visual synchronization, status indicator lights, convenient for daily use

Slide 10: Application Scenarios

The BY-NVR2064P is the ideal video surveillance solution for the following scenarios:

. Retail stores, convenience stores and supermarkets

. Small warehouses and logistics distribution centers

. Office buildings and enterprise offices

. Family villas and residential communities

. Small workshops and mini factories

. Small schools and community medical institutions
