12 Channel Embedded NVR BY-NVR2012M

       12 Channel Embedded NVR

Slide 1: Title Page

Title: BY-NVR2012M - 1 Disk 12CH H.265 Embedded NVR

Subtitle: High-Performance, User-Friendly Video Surveillance Solution

Brief Intro: A commercial-grade embedded NVR specially designed for small-scale scenarios like stores, offices, warehouses and families, with HD access, remote monitoring and full-featured video management.

Slide 2: Product Overview

The BY-NVR2012M is the most easy-to-use, popular and commercial 12-channel embedded NVR in our product line, engineered for small business and home surveillance needs.

Core positioning & key highlights:

Tailored for store, small warehouse, office and family scenarios

Seamless access to HD IPC cameras

Comprehensive core functions: real-time preview, video recording, playback & forward

Effortless remote monitoring: mobile phone support, traversal service, APP seconds connection for preview and remote recording playback

Advanced H.265+/H.265/H.264 decoding for high-efficiency video storage & transmission

Slide 3: Core System Structure

Built with professional embedded technology for stability and reliability:

Embedded LINUX design + pure hardware decode: ensures smooth operation and fast video processing

Equipped with watchdog function: automatic fault recovery, reduces manual maintenance

Main processor: Hi3536D (high-performance chip for surveillance scenarios)

Storage mode: hard disk storage + external USB backup

Display: HDMI HD display + VGA output, dual display options for different usage needs

Network access: standard IP network video access, compatible with mainstream IP camera protocols

Slide 4: Video Input & Output Specifications

Video Input

Supports 8ch*4K, 12ch 5MP HD IPC access (flexible for different HD camera configurations)

Each channel with dual stream access: meets both local high-definition viewing and remote low-bandwidth transmission

Auto search, add, recording & preview: zero debugging required, extremely user-friendly

Total access bandwidth: 64Mbps, supports simultaneous multi-channel HD video input

Video Output

1×HDMI output + 1×VGA output, homology display (synchronized video content)

Multi-terminal preview support: Videolink client + mobile APP

APP seconds connection: instant remote preview without complicated operation

Max video recording resolution: 3840×2160 (4K ultra HD)

Slide 5: Video Decoding & Playback Capacity

Multi-format decoding: H.265+/H.265/H.264 (adapts to most mainstream camera encoding formats, saves storage space via H.265+ high compression)

High-performance local playback:

1CH 8MP ultra HD playback

4ch 4K HD simultaneous playback

Lossless video quality, smooth playback without frame drop

Slide 6: Audio & Storage Features

Audio

Standard G.711 audio encoding

Synchronous audio and video recording: captures both video and sound for complete surveillance

Multi-terminal audio & video preview/playback: HDMI local display + Videolink client + mobile APP, consistent audio-visual experience

Storage

1×SATA hard disk interface, supports 8TB large capacity hard disk (meets long-term video storage needs)

Smart recording modes: schedule record + motion detection linkage record (saves storage space, focuses on key surveillance footage)

Flexible backup options: external USB storage devices (USB flash drive, mobile hard disk) for easy video export and backup

Data security: stable storage, no accidental data loss

Slide 7: User & Network Specifications

User Access

Local maximum support for 16 concurrent users: meets multi-person simultaneous viewing for small enterprises/teams

Simple user management: easy to add/delete users and set access permissions

Network Interface & Protocols

1×RJ45 Ethernet interface, 10/100M self-adaption (compatible with mainstream network bandwidth)

Rich mainstream protocols supported: TCP/IP, IPv4, DHCP, NTP, RTSP, ONVIF, P2P, SMTP

ONVIF compatibility: seamless access to third-party IP cameras

P2P technology: realizes fast remote connection without public IP configuration

SMTP support: alarm email push for real-time alert

Slide 8: Peripheral & Physical Interfaces

Peripheral Interface

2×USB2.0 interfaces (rear position, easy to operate)

Multi-functional USB support: mouse connection for local operation, USB upgrade for firmware update, data import/export for video backup

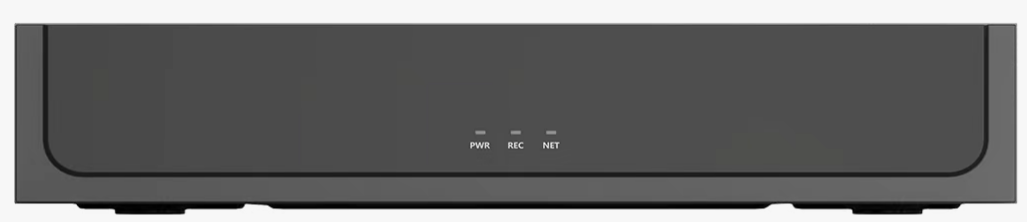

Front Panel

Simple and intuitive indicator lights for real-time status monitoring:

1×power indicator: shows power on/off status

1×record indicator: flashes when video is recording

1×network indicator: displays network connection status

Compact design, easy to check device running status at a glance

Slide 9: Core Business Functions

A full set of professional surveillance functions to meet all scenario needs:

Basic functions: real-time preview, video recording, video forward/playback

Remote service: full-featured remote operation via client/APP

Alarm linkage: supports motion detection and other alarm trigger linkage recording/alert

Professional client support: Videolink client remote control software (for computer terminal)

Optional buzzer: audio alarm reminder for abnormal status (customizable)

Slide 10: Environmental & Power Parameters

Working Environment

Working Temperature: -10℃ ～ ＋55℃ (wide temperature range, adapts to indoor different environments)

Working Humidity: 10% ～ 90% (no condensation required, suitable for dry/humid indoor scenes)

Strong environmental adaptability, stable operation in various small business/home environments

Power Supply

DC +12V/2A power supply (low power consumption, energy-saving)

Stable power input, ensures continuous operation of the device

Slide 11: Product Advantages Summary

User-friendly: Auto search/add, zero debugging, APP seconds connection, easy for non-professionals to operate

HD performance: 4K/5MP multi-channel access, 4K recording, high-definition playback

Efficient encoding: H.265+/H.265 support, saves 50% storage space compared with H.264

Flexible storage: 8TB SATA hard disk + USB backup, smart recording modes

Multi-terminal remote: Mobile APP + Videolink client + cloud service, all-round remote monitoring

Stable & reliable: Embedded LINUX, pure hardware decode, watchdog function, 24/7 continuous operation

Wide compatibility: ONVIF protocol, supports third-party IP cameras

Scenario-oriented: Tailored for store, office, small warehouse and family, perfect for small-scale surveillance

Slide 12: Application Scenarios

Ideal for various small-scale indoor surveillance scenarios:

Retail stores: real-time monitoring of store environment, anti-theft, customer flow statistics

Small warehouses: goods safety monitoring, staff operation management

Offices: office area monitoring, document security, access control linkage

Family: home safety monitoring, elderly/child care, anti-theft alert

Small shops, cafes, small clinics and other small business scenes
