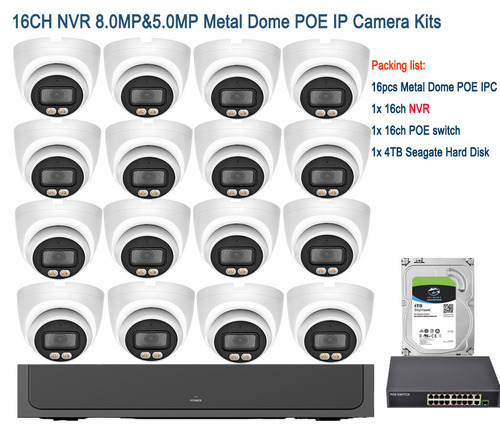

Main feature of Camera:
Professional design for HD network camera, small, beautiful and delicate, best for home security. Material: aluminum alloy, innovative patented heat dissipation structure, make HD camera can works well under high temperature. 8.0 megapixel, 5.0 megapixel Advanced H.265+/H.265/H.264 processing technology, high brightness imported SMT IR source, show the best HD video effects in both day and night environment. HD CS lens+ IR-CUT auto switch in day and night, 2.8mm fixed focus lens 4pcs AI ColorVu Led, effective night vision distance up to30m, excellent performance in dark environment. Support 3D DNR, auto white balance, auto electronic shutter, auto electronic gain, real color reproduction, high resolution image. ONVIF protocol, can provide the SDK.
Optional back-end products for the system:
IE browse software, configure by WEB, OSD(on screen display),real-time video transmission, motion detection; support remote surveillance client software; support mobile monitoring(Iphone, Android), support cloud service;provide complete SDK pack;
Model: | SE-16KITRD5 | SE-16KITRD8 | Camera | Imaging sensor: | MSTAR316DM+GC4653 | MStar328Q+IMX415 | Scanning mode: | Progressive scanning | Illumination: | color 1.0Lux@F1.2,B/ W 0.1 Lux@F1.2 | Lens: | Standard with 2.8mm fixed focus CS lens | Day and night switch: | IR-CUT dual optical filters auto switch in day and night | DNR: | 3D-DNR | IR source: | 4pcs AI ColorVu Led | Effective night vision distance: | effective night vision distance is 30m | Standard compression | Image compression: | H.265+/H.265/H.264 | Video compression: | H.265+/H.265/H.264 video coding, support dual stream, AVI format; code stream 500k~8M
bps adjustable, support PAL and NTSC | Frame rate: | 8MP@20fps, 5MP@25fps, 4MP@fps;3MP and below default@25fps, 1~25fps adjustable | Function | Interface protocol: | ONVIF 2.4 | Network connection | 1 RJ45, 10/100M Ethernet adaptive interface; support RTSP / FTP / PPPOE / DHCP / DDNS / NTP / UPnP network protocols | Intelligent alarm: | Human Body Detection, Motion detection, shadow alarm, network cable break, IP address conflict | POE: | YES | Lightning Protection | Power, network, POE comprehensive lightning protection, in line with national standards GB/T17626.5, the international standard IEC61000-4-5. | features | configure by WEB, OSD(on screen display), real-time video transmission, motion detection; support remote surveillance client software; support mobile monitoring(Iphone, Android), support cloud service; provide complete SDK pack; | Basic parameter | Power input: | DC 12V±10% | Power consumption: | 1W (IR off) / 9.5W (IR on) | 1.1W / 9.6W (IR on) | Work environment: | -35℃ ~ 60℃, humidity is less than 95% (no condensation) |
Main feature of NVR:
Specification | 1 Disk 16CH H.265+ NVR | System Structure | Embedded LINUX design, pure hardware decode, hard disk storage, HDMI HD display,IP network video access. | Main processor Hi3536C; | Video Input | HD IPC access, each channel support dual stream access, support auto search,add,recording, preview and without debugging; | Access bandwidth 64Mbps; | Video Output | 1channel HDMI output, 4K (3840×2160)/30Hz,1920×1080,1440×900,1366×768, 1280×1024,1280×800,1024×768 resolution output show; | 1/2/4/6/8/9 pictures real time preview; | Video recording resolution | 720P/960P/1080P/3MP/4MP/5MP/8MP; | Video Capacity | Support H.265+/H.265/H.264 decoding; | NVR local recording playback. | Storage | 1*SATA hard disk interface,support 8TB capacity; | Support schedule record, motion detection linkage record; | Support external USB storage devices (such as ordinary U disk, mobile hard disk) backup; | Network Interface | 1*RJ45 Ethernet interface, support 10/100M self-adaption; support TCP/IP, IPv4, DHCP, NTP, RTSP, ONVIF, SMTP and so on protocols; | Peripheral Interface | 2*USB2.0 interface(rear); support for the mouse, USB upgrade, import and export; | Front Panel | 1* power,1*record,1*network indicator light; | Working Temperature | -10℃～＋55℃ | Working Humidity | 10%～90% |
Main feature of POE Switch:
Key Features
Up to 30W of Power on Extender 250M 1-16 port IEEE 802.3af/at Compatible With All IEEE 802.3af/at or Legacy Compact Design Fits Easily in WLAN Access Plug-and-Play no configuration required Easy installation and maintenance Save up to 83% power with Green Technology complies to IEEE 802.3af PoE standard and is backward
Hardware Specification |
10/100Mbps Copper Ports |
16 10/ 100Base-TX RJ-45 Auto-MDI/MDI-X ports |
1000Mbps Copper Ports |
2 10/100/1000Mbps RJ-45 Auto-MDI/MDI-X ports |
SFP/mini-GBIC Slots |
2 1000Base-SX/LX, shared with Port-17~Port-18 |
Switch Architecture |
Store-and-Forward |
Switch Fabric |
12.8Gbps / non-blocking |
Switch Throughput |
5.36Mpps @64Bytes |
Address Table |
8K entries |
Share Data Buffer |
512Kbytes |
Maximum Frame Size |
9K Bytes |
Flow Control | Back pressure for Half-Duplex IEEE 802.3x Pause Frame for Full-Duplex |
LED |
Power （yellow ） 10/100 LINK / ACT (Green) 1000 ACT(Green);1000 LINK(yellow)
|
Reset Button | < 5 sec: System reboot > 5 sec: Factory Default |
Dimension (W x D x H) |
293 x 165 x 44 mm, 1U height |
Weight |
2kg |
Power Requirement |
100~240V AC, 50-60 Hz |
Power Consumption / Dissipation |
250 Watts maximum |
Power over Ethernet |
PoE Standard |
IEEE 802.3af/at Power over Ethernet / PSE |
PoE Power Supply Type |
End-Span |
PoE Power Output | Per Port 52V DC, 350mA~600ma . Max. 30 Watts |
Power Pin Assignment |
1/2(+), 3/6(-) |
PoE Power Budget |
250 Watts |
|
